Name

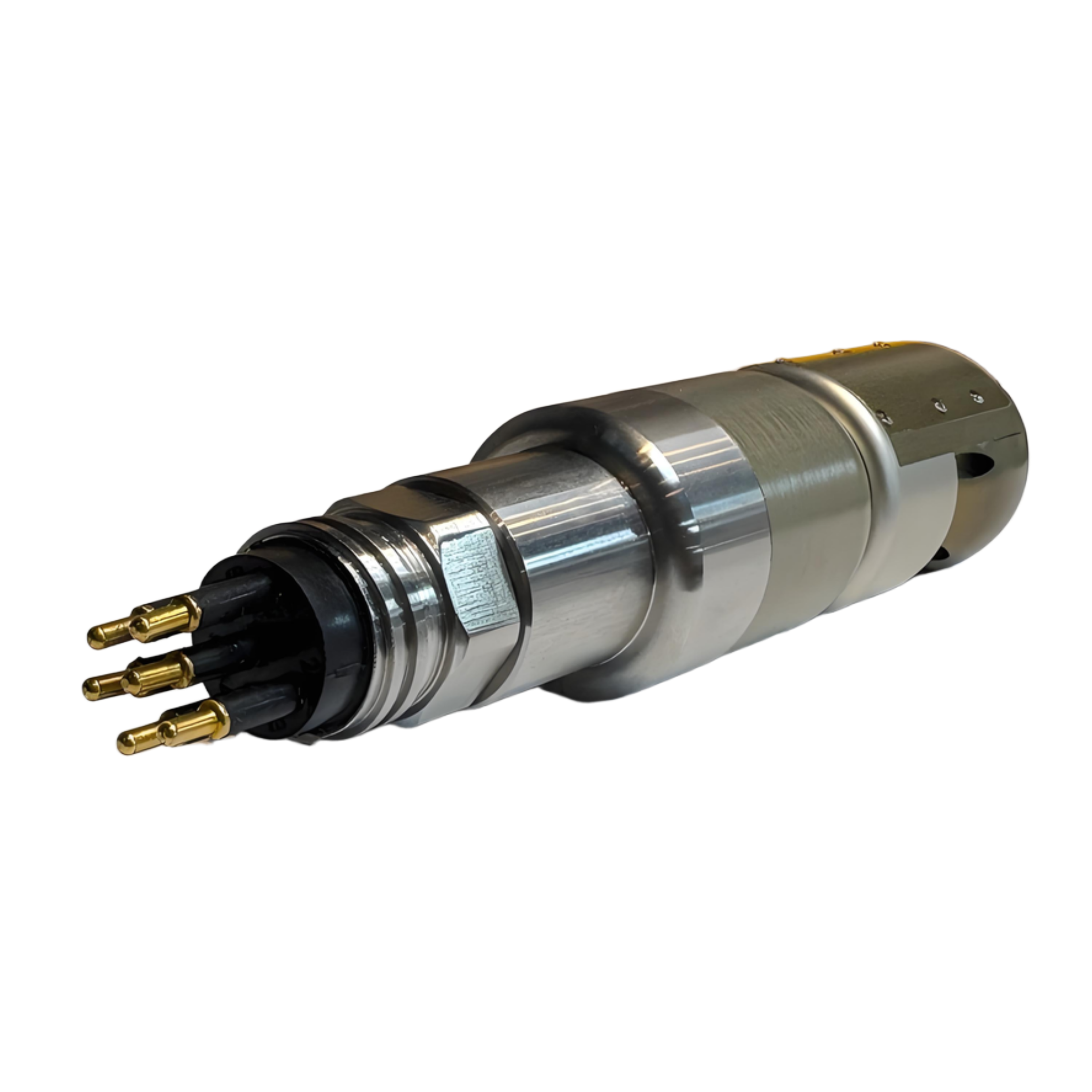

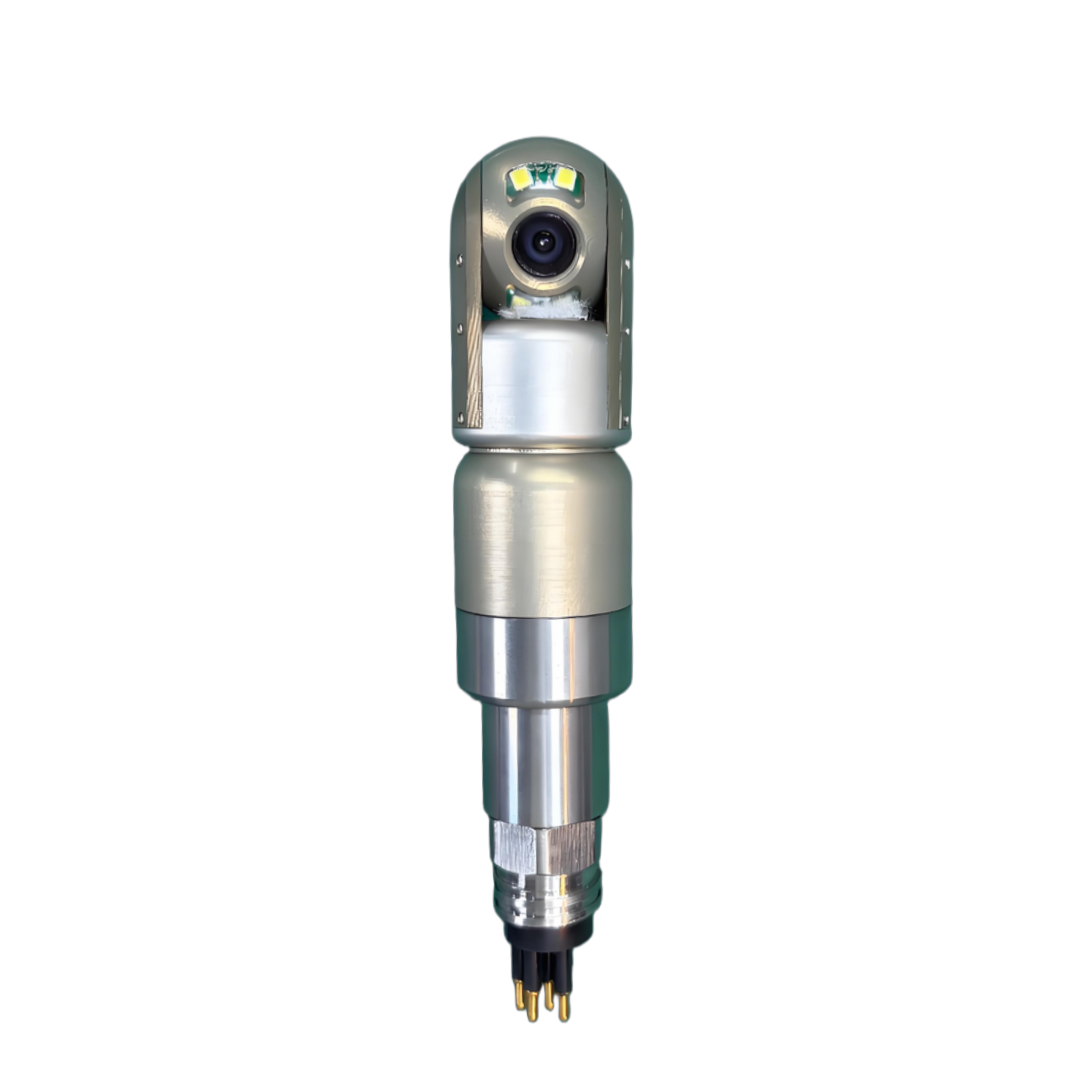

Underwater Coaxial HD Camera (30)

Model

GLF-UDC-D30

Camera Parameter

Resolution

2MP coaxial HD CMOS/1920*1080

Signal Type

Coaxial HD

Luminous Flux

20 lumens

Frame Rate

25fps（1080p）

SYS

PAL/NTSC optional

Minimum illuminance

0.01 lux at F1.2 5600 K （0.001lux at F1.2 5600 K）

Video output

1V-75 ohms AHD video signal (anti-interference processing technology)

Rotation angle

PAN360°, TILT180°

Antenna Sweep Radius

Maximum in air：10m    Minimum in air：80mm

Lens

Lens

3.6mm without any unusual changes

Focal Length

Electric focus

General

Material

Aluminum

Waterproof

0-100m

Power Supply

12VDC

Operating Temperature

-20℃ ~ +60℃

size

30mm*110mm (Not included connectors)

Parts

Picking List

Cable、Adaptor、Warranty Card、Certification、Report
